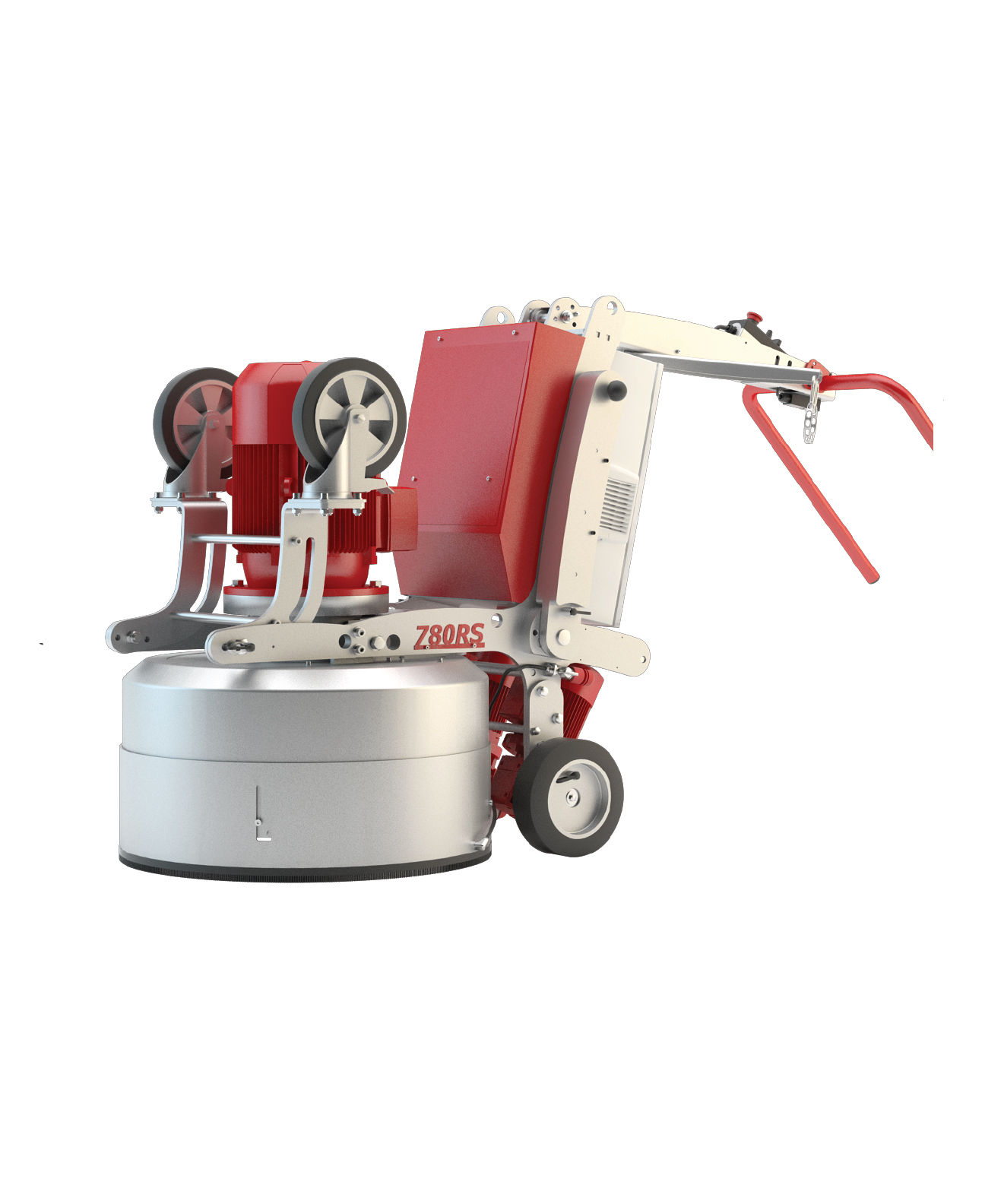

BMG-780RS
The new BMG-780RS Remote Control Grinder is the ideal machine to prepare surfaces prior to new coatings, like removal of old coatings or adhesive residues, to smooth or flatten concrete slabs including curled expansion joints, or to just simply remove unsightly surface imperfections. For decorative concrete applications, it is an ideal system for polishing concrete to a high shine or restoring old slabs for newer architectural finishes. The floating shroud with brush skirt is an added feature for those types of processes. The unit also comes standard with a weight kit for proper weight distribution during grinding and polishing. There is also a wheel kit for transport available that makes it easy to mobilize the machine.
- Specifications- Grinding Width - 30 in. (762mm) - Tool Diameter - 9 in. (240mm) - Tooling Speed - 400-1200 RPM - Motor Speed - 580-1750 RPM - Motor - 23 hp max. - Wheel Motors - 2 x 25kW - Amperage - 32/63 A - Voltage - 230/480V, 3ø, 60 Hz - Power Cord - 50 ft. - Dust Hose Connection - 3 in. (76mm)Ø - Dimensions - L 83 in. (2108mm) x W 31 in. (788mm) x H 49 in. (1244mm) - Weight - 1245 lbs (565kg)
- Advantages-
Three head planetary design
-
Separate drive system for main drum and
-
planetary disks
-
Heavy-duty, industrial machine
-
Virtually dust free when connected to BDC-3140P dust collector
-
Dual wheel motors allow for precise speed control
-
Remote control unit for operation of all controls
-
Remote control operation relieves operator fatigue
-
Increases production and consistency
-
Adjustable weights for control of grinding pressure

-
