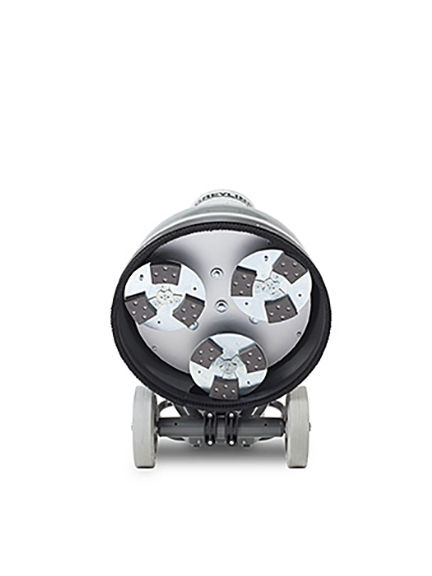

HTC GREYLINE 450
A planetary grinder for both concrete grinding and floor prep HTC GreylineTM 450 is a single-phase, planetary grinder with three grinding heads and a counter-rotating grinding wheel for a stabile grinding without lateral forces. It works equally well for concrete grinding and floor prep as it does for grinding/sanding of wooden floors. The machine is divisible for easy transport.
Specifications
Name
HTC GL 450
HTC GL 450
HTC GL 450 HD
HTC GL 450
HTC GL 450
Article Number
113126
113127
113572
113155
113144
Length
705 mm
705 mm
705 mm
27.8 inch
27.8 inch
Width
490 mm
490 mm
490 mm
19.3 inch
19.3 inch
Height
1305 mm
1305 mm
1305 mm
51.4 inch
51.8 inch
Weight
95 kg
95 kg
95 kg
209 lbs
209 lbs
Motor output
1,5 kW
1,5 kW
2,2 kW
2 HP
2 HP
Power consumption
8,31 A
17,58 A
12,6 Amp
17,58 A
8,31 A
Voltage
1 x 230 V
1 x 110 V
1 x 230 V
1 x 110 V
1 x 230 V
Frequency
50 Hz
50 Hz
50 Hz
60 Hz
60 Hz
Grinding pressure
63 kg
63 kg
63 kg
139 lbs
139 lbs
Revolution speed
480 r.p.m
480 r.p.m
750 r.p.m
576 r.p.m
576 r.p.m
Grinding discs
3 x 180 mm
3 x 180 mm
3 x 180 mm
3 x 7.1 inch
3 x 7.1 inch
Grinding head weight
68 kg
68 kg
68 kg
150 lbs
150 lbs
Grinding width
450 mm
450 mm
450 mm
17.7 inch
17.7 inch
Grinding motors
1
1
1
1
1
Advantages
Adjustable chassis and handle
The floor grinder’s chassis and handle can easily be adjusted to fit your preferred working position. HTC recognize the value of good ergonomics.
Easy tool choice
Three standard tools in different grit sizes for removal of coatings and leveling of concrete are all the tools needed, it can’t be easier.
Floating Cover HTC GreylineTM
All grinders in the HTC GreylineTM series come with a floating cover. The floating cover simplifies hand- ling of the machine and creates a better dust absorption. No need for a separate splash guard.
Easy Grinding
HTC GreylineTM literally means easy grinding. Select and attach your tools, plug the machine to the wall & start grinding.
Divisible for easy transport
All floor grinders in the HTC GreylineTM series are divisible which make the grinders easy to transport.
Robust chassis
The robust and sturdy chassis makes the machines perfectly balanced which is important when grinding but also simplifies machine handling for tools change etc.
EZchange™
The HTC developed tool change system is quick, simple and safe. One tooling system for all HTC’s grinding machines.
Good working environment
HTC’s machines are perfectly balanced during grinding with vibration levels much lower than the threshold values. Sound levels are very low and grinding is more or less dust free.
